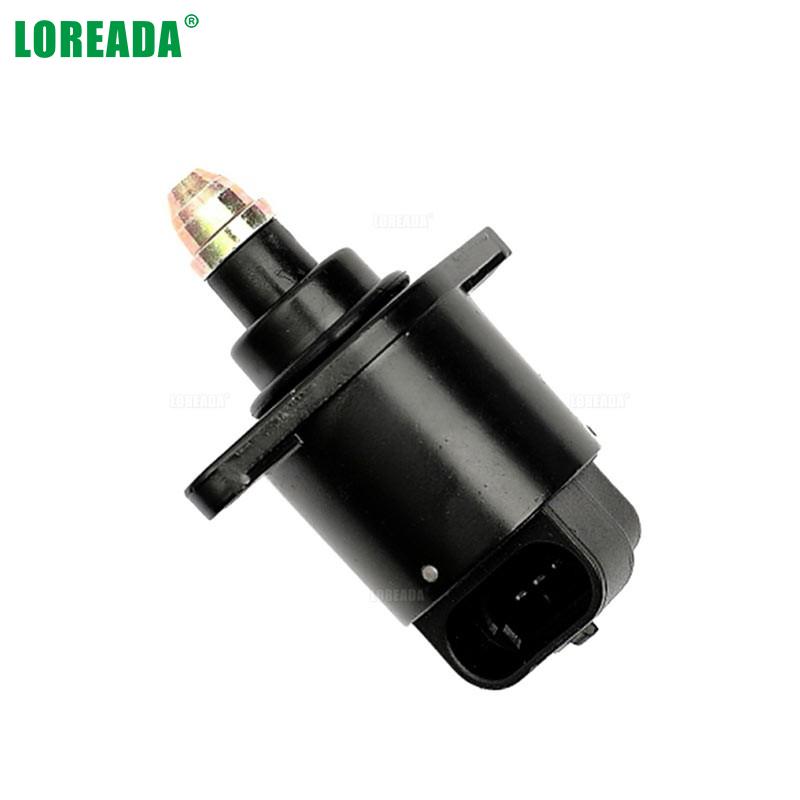

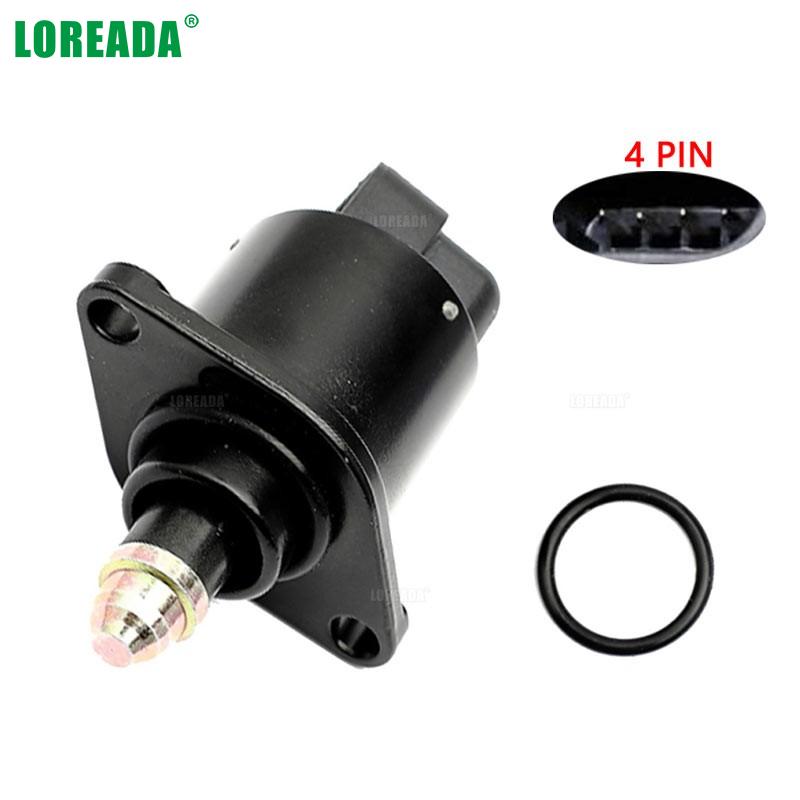

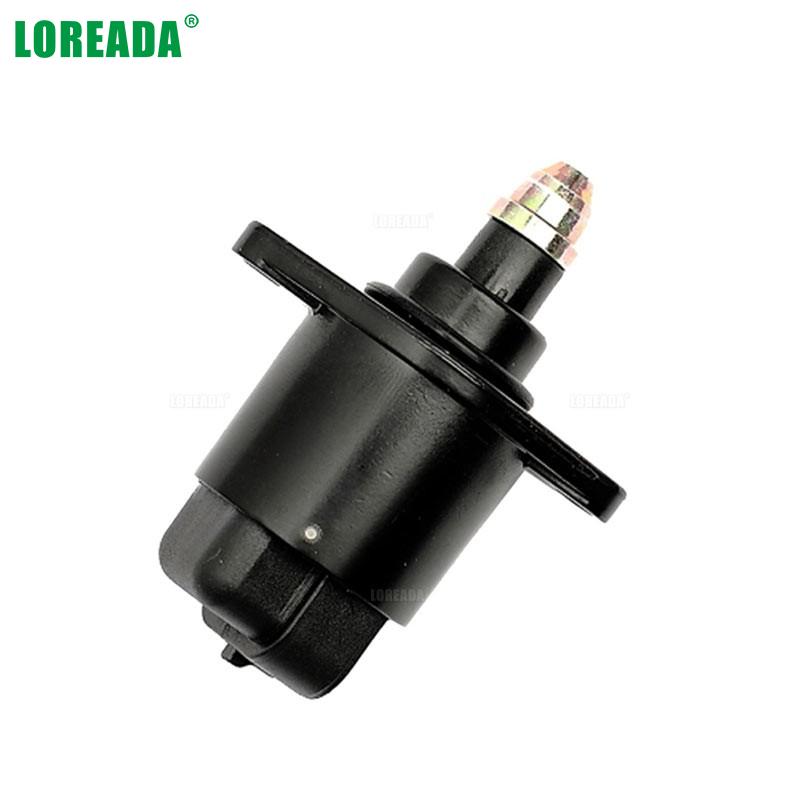

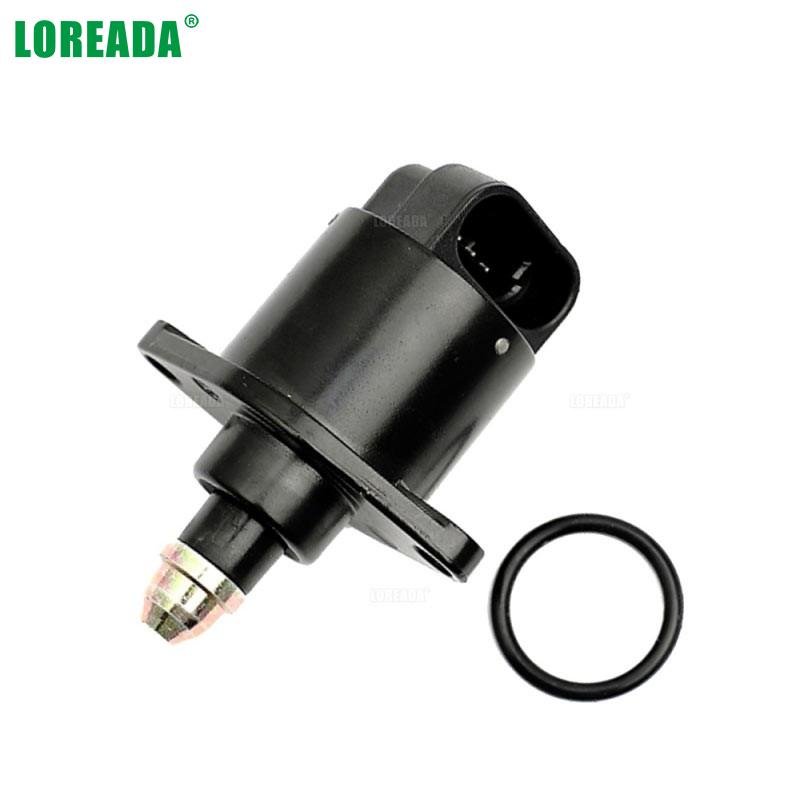

Description
Manufacturer OEM Number:
D5150
For MARELLI: 40430102 7079064
For VW：0279980491
For VDO：AT-05150R
Replaces Dealer Part Numbers:
026906247A
026 906 247 A
F00099M150
F 000 99M 150
Warranty: 3 Years
Application:
For Fiat Tempra (159) 2.0 1998Cc 93Kw Saloon 1995-1998
For Volkswagen Gol 1.6 Unf 1596Cc 65Kw Hatchback 1996-2005
For Volkswagen Gol 1.6 Bwx 1596Cc 73Kw Hatchback 1998-2008
For Volkswagen Gol 1.6 Bifuel Upd 1598Cc 73Kw Hatchback 2002-2008
For Volkswagen Gol 1.8 Udh Udb 1781Cc 72Kw Hatchback 1994-2003
For Volkswagen Gol 1.8 Alcool 1781Cc 75Kw Hatchback 1994-1999
For Volkswagen Gol 2.0 1984Cc 107Kw Hatchback 1995-2000
For Volkswagen Gol 2.0 1984Cc 85Kw Hatchback 1996-2002
For Volkswagen Parati 1.6 Unf 1596Cc 65Kw Estate 1996-1999
For Volkswagen Parati 1.8 1781Cc 75Kw Estate 1995-1999
For Volkswagen Parati 1.8 Udh Udb 1781Cc 72Kw Estate 1995-1999
For Volkswagen Parati 2.0 Uqg 1984Cc 90Kw Estate 1996-1999
For Volkswagen Parati 2.0 Alcool 1984Cc 85Kw Estate 1997-1999
For Volkswagen Parati 2.0 Gti 1984Cc 107Kw Estate 1996-2000
For Volkswagen Parati 1.6 Unf 1596Cc 65Kw Estate 1999-2005
For Volkswagen Parati 1.6 Alcool Upd 1596Cc 73Kw Estate 1997-2005
For Volkswagen Parati 1.8 Udh Udb 1781Cc 72Kw Estate 1999-2005
For Volkswagen Parati 2.0 Uqg 1984Cc 90Kw Estate 1999-2005
For Volkswagen Polo Saloon (6Kv2) 1.8 1781Cc 73Kw Saloon 1996-2001
For Volkswagen Polo Saloon (6Kv2) 1.8 1781Cc 75Kw Saloon 1998-2001
For Volkswagen Quantum 1.8 1781Cc 76Kw Estate 1996-1998
For Volkswagen Quantum 1.8 1781Cc 73Kw Estate 1998-2001
For Volkswagen Quantum 1.8 Alcool 1781Cc 76Kw Estate 1997-2001
For Volkswagen Quantum 2.0 1984Cc 86Kw Estate 1996-1998
For Volkswagen Quantum 2.0 1984Cc 84Kw Estate 1998-2001
For Volkswagen Quantum 2.0 Alcool 1984Cc 91Kw Estate 1997-1998
For Volkswagen Santana 1.8 1781Cc 73Kw Saloon 1998-2006
For Volkswagen Santana 1.8 Alcohol 1781Cc 76Kw Saloon 1997-2006
For Volkswagen Santana 2.0 1984Cc 84Kw Saloon 1997-2003
For Volkswagen Santana 2.0 Alcohol 1984Cc 91Kw Saloon 1997-1998
For Volkswagen Santana 2.0 Alcohol 1984Cc 86Kw Saloon 1998-2000
For Volkswagen Saveiro Platform/Chassis 1.6 Unf 1596Cc 65Kw Platform/Chassis 1996-2003
For Volkswagen Saveiro Platform/Chassis 1.6 Alcool Upd 1596Cc 73Kw Platform/Chassis 1997-2003
For Volkswagen Saveiro Platform/Chassis 1.8 1781Cc 75Kw Platform/Chassis 1997-2000
For Volkswagen Saveiro Platform/Chassis 1.8 1781Cc 72Kw Platform/Chassis 1997-2001
For Volkswagen Saveiro Platform/Chassis 2.0 Uqg 1984Cc 82Kw Platform/Chassis 1997-2005
For Volkswagen Saveiro Platform/Chassis 1.8 Udh 1781Cc 72Kw Platform/Chassis 2000-2005
TECHNICAL PARAMETER:
Operateing Temperature Range:-40℃-125℃(150℃ peak)
Nominal Operating Voltage:12VDC
MIN/MAX Operating Voltage:7.5V-14VDC
Resistance Per Winding (@25℃):53Ω±10%
Minimum Resistance (@-40℃):35Ω
Solenoid inductance:33mH±20%
Step Increment :0.04167mm
MAX travel:8.5mm(204step)
