Description

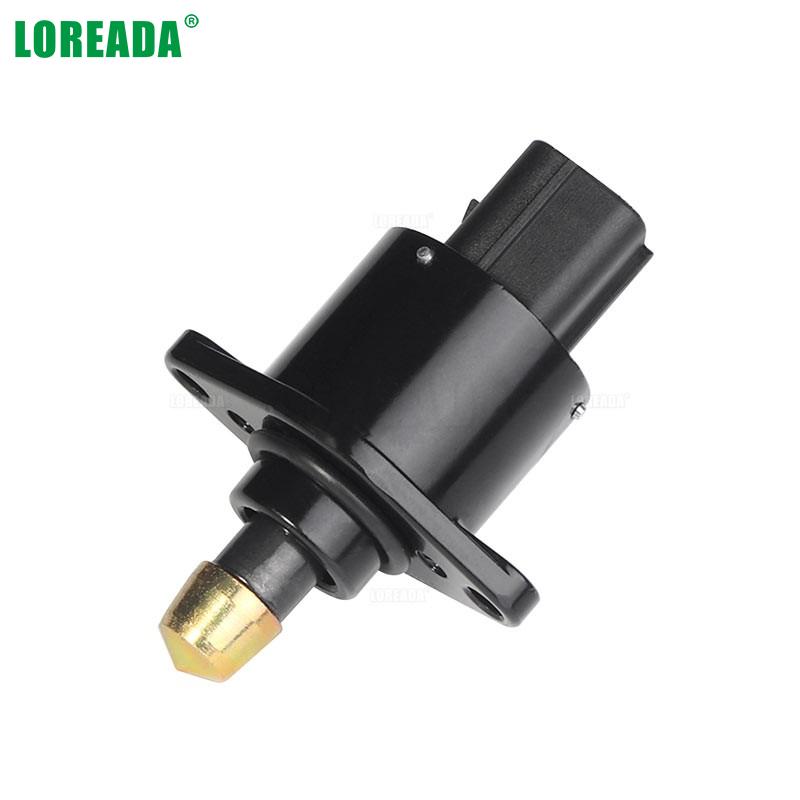

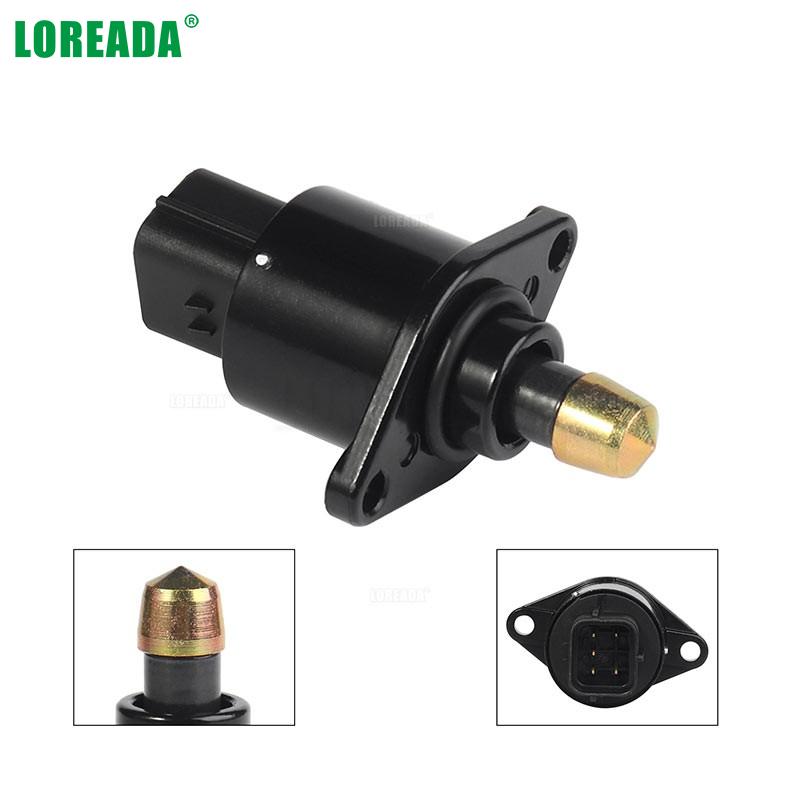

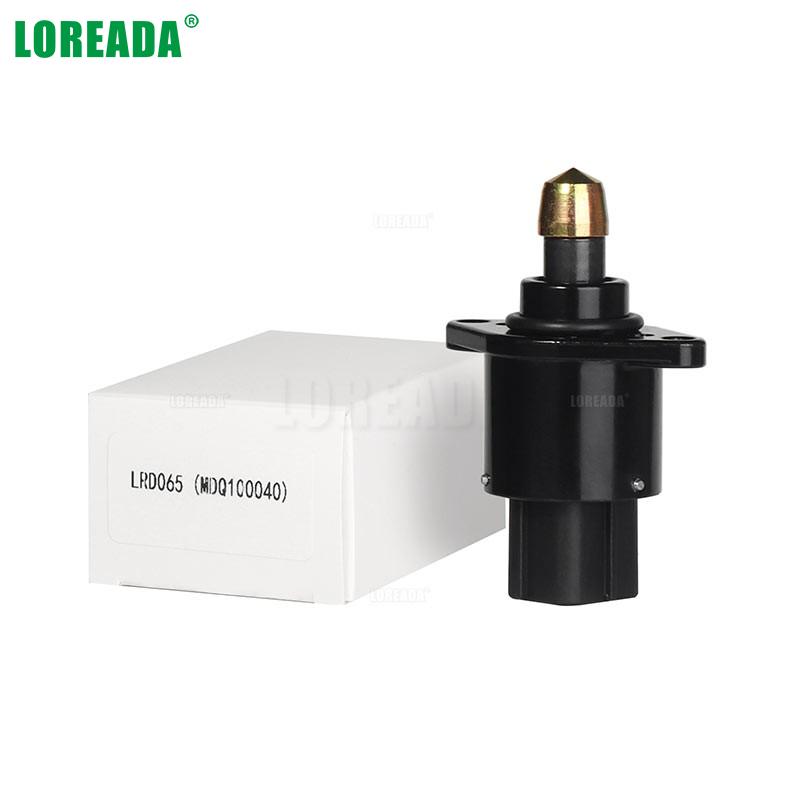

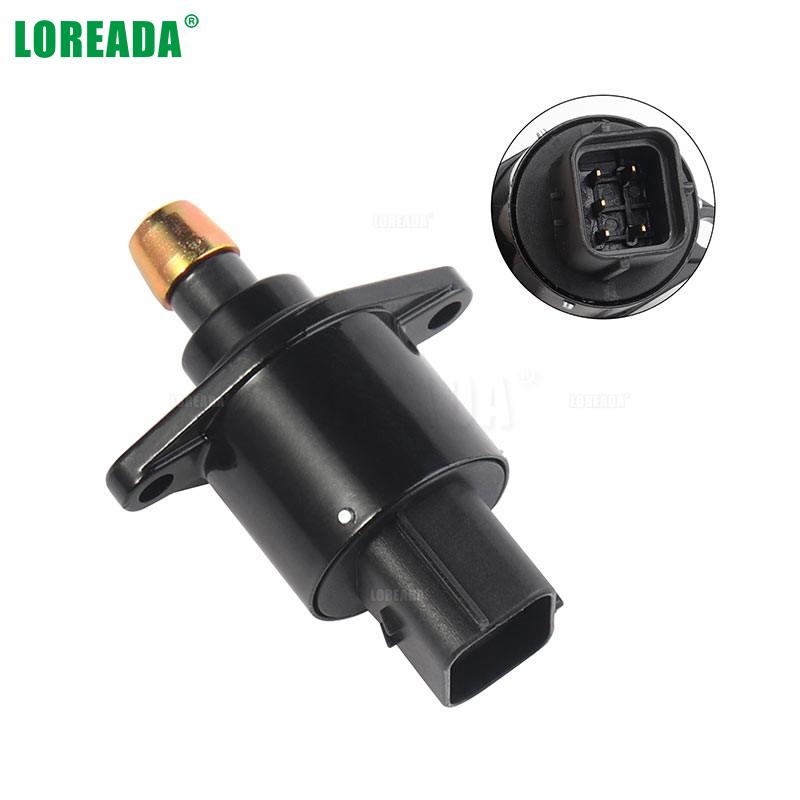

Manufacturer OEM Number:
MDQ100040 MDQ100041 MLZ100050
Features:
1. Long lasting and reliable working life time
2. OEM quality
3.100% Tested Before leaving factory
Warranty: 1 Years /3 Years
TECHNICAL PARAMETER:
Operateing Temperature Range:-40℃-125℃(150℃ peak)
Nominal Operating Voltage:12VDC
MIN/MAX Operating Voltage:7.5V-14VDC
Resistance Per Winding (@25℃):53Ω±10%
Minimum Resistance (@-40℃):35Ω
Solenoid inductance:33mH±20%
Step Increment :0.04167mm
MAX travel:8.5mm(204step)
Application:
FOR MG
MGF 1995 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1995 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1996 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1996 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1997 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1997 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1998 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1998 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1999 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1999 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
FOR Rover
MGF 1995 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1995 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1996 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1996 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1997 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1997 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1998 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1998 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
MGF 1999 RD [1995-2002] Convertible conversível 1.8i 16 V 1796ccm 120HP 88KW (Gasolina)
MGF 1999 RD [1995-2002] Convertible conversível 1.8i VVC 1796ccm 146HP 107KW (Gasolina)
FOR Rover
200 1995 RF [1995-2000] Hatchback Hatchback 214 SI 1396ccm 103C 76KW (Gasolina)
200 1995 RF [1995-2000] Hatchback Hatchback 216 SI 1588ccm 112CV 82KW (Gasolina)
200 1995 RF [1995-2000] Hatchback Hatchback 218 K Vi 1796ccm 146HP 107KW (Gasolina)
200 1996 RF [1995-2000] Hatchback Hatchback 214 SI 1396ccm 103C 76KW (Gasolina)
200 1996 RF [1995-2000] Hatchback Hatchback 216 SI 1588ccm 112CV 82KW (Gasolina)
200 1996 RF [1995-2000] Hatchback Hatchback 218 K Vi 1796ccm 146HP 107KW (Gasolina)
200 1997 RF [1995-2000] Hatchback Hatchback 214 SI 1396ccm 103C 76KW (Gasolina)
200 1997 RF [1995-2000] Hatchback Hatchback 216 SI 1588ccm 112CV 82KW (Gasolina)
200 1997 RF [1995-2000] Hatchback Hatchback 218 K Vi 1796ccm 146HP 107KW (Gasolina)
200 1998 RF [1995-2000] Hatchback Hatchback 211 1119ccm 60CV 44KW (Gasolina)
