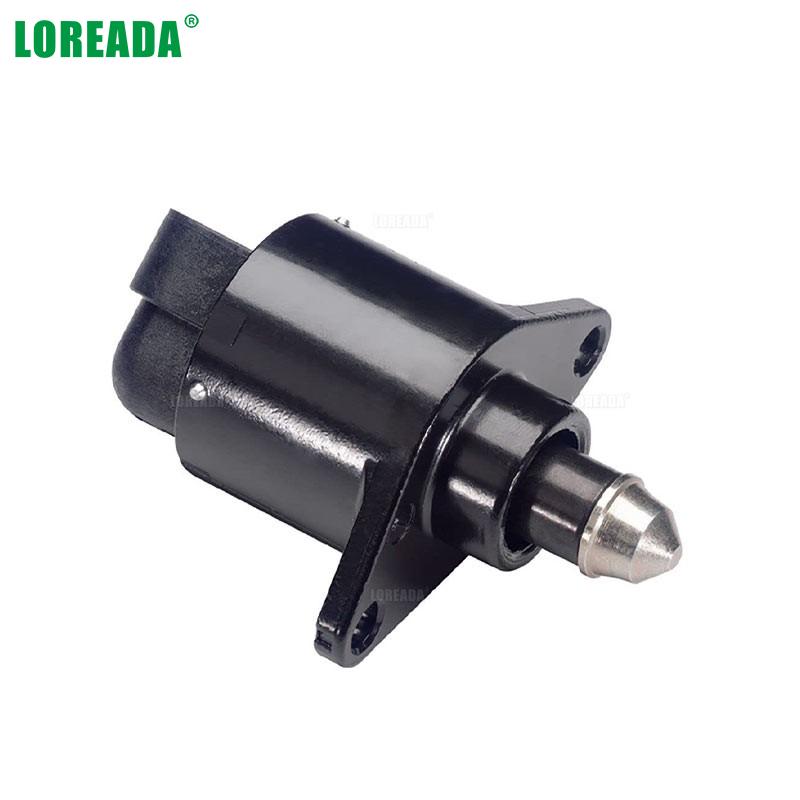

Description
Manufacturer OEM Number:
1920.9L 19209L B32/01 A97122
Warranty: 3 Years
Application:
CITROEN SAXO (S0, S1) (1996/02 - 2004/04)
PEUGEOT 306 Hatchback (7A, 7C, N3, N5) (1993/01 - 2003/10)
PEUGEOT 306 (7B, N3, N5) (1993/04 - 2003/10)
PEUGEOT 106 II (1) (1996/04 - /)
PEUGEOT PARTNER Box (5) (1996/04 - /)
PEUGEOT PARTNER Combispace (5F) (1996/05 - /)
PEUGEOT 206 Hatchback (2A/C) (1998/08 - /)
PEUGEOT 306 Break (7E, N3, N5) (1994/06 - 2002/04)
TECHNICAL PARAMETER:
Operateing Temperature Range:-40℃-125℃(150℃ peak)
Nominal Operating Voltage:12VDC
MIN/MAX Operating Voltage:7.5V-14VDC
Resistance Per Winding (@25℃):53Ω±10%
Minimum Resistance (@-40℃):35Ω
Solenoid inductance:33mH±20%
Step Increment :0.04167mm
MAX travel:8.5mm(204step)
