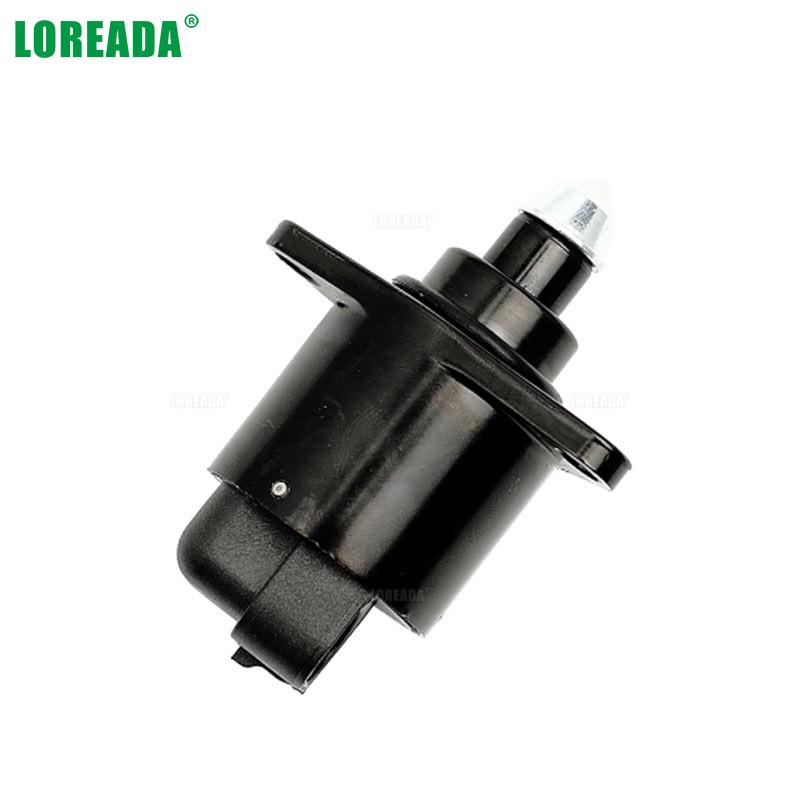

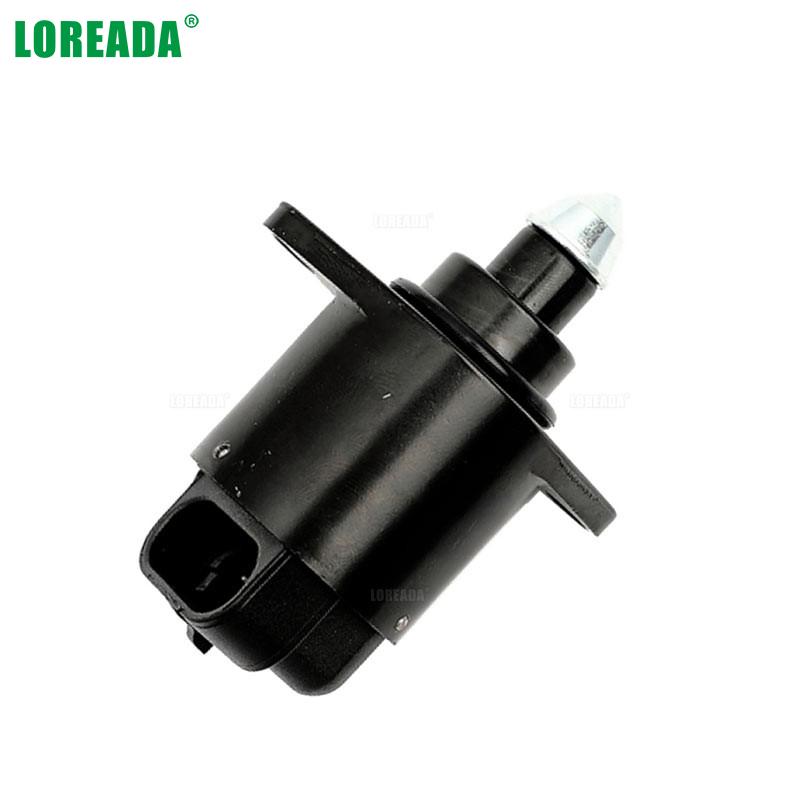

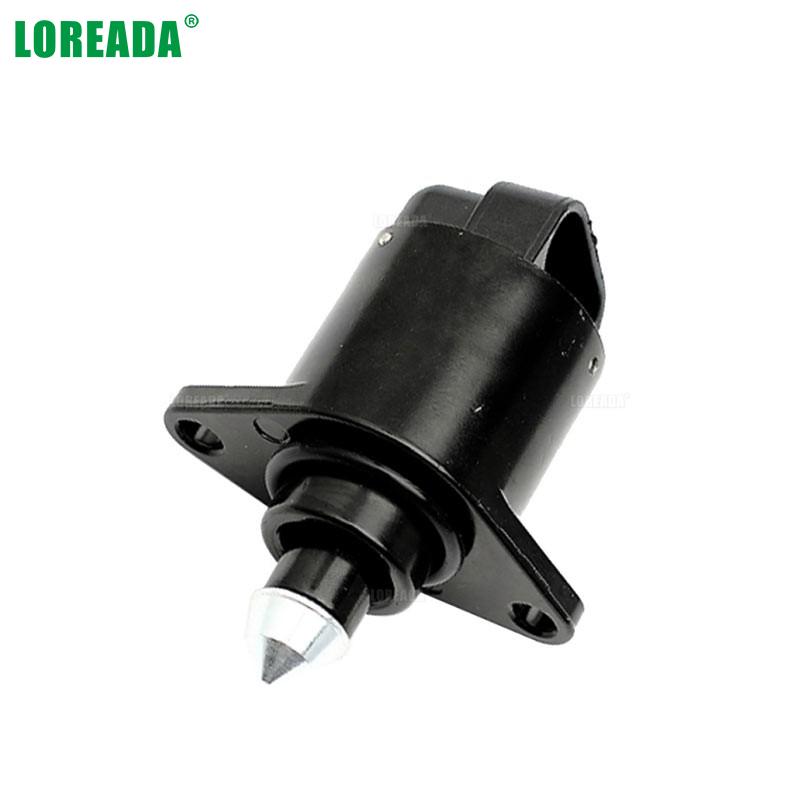

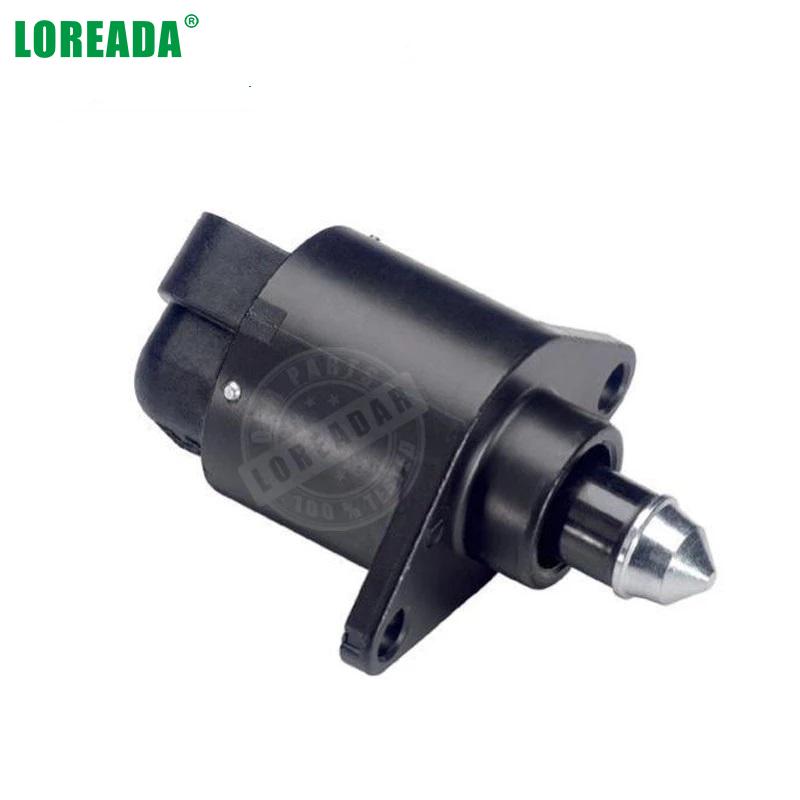

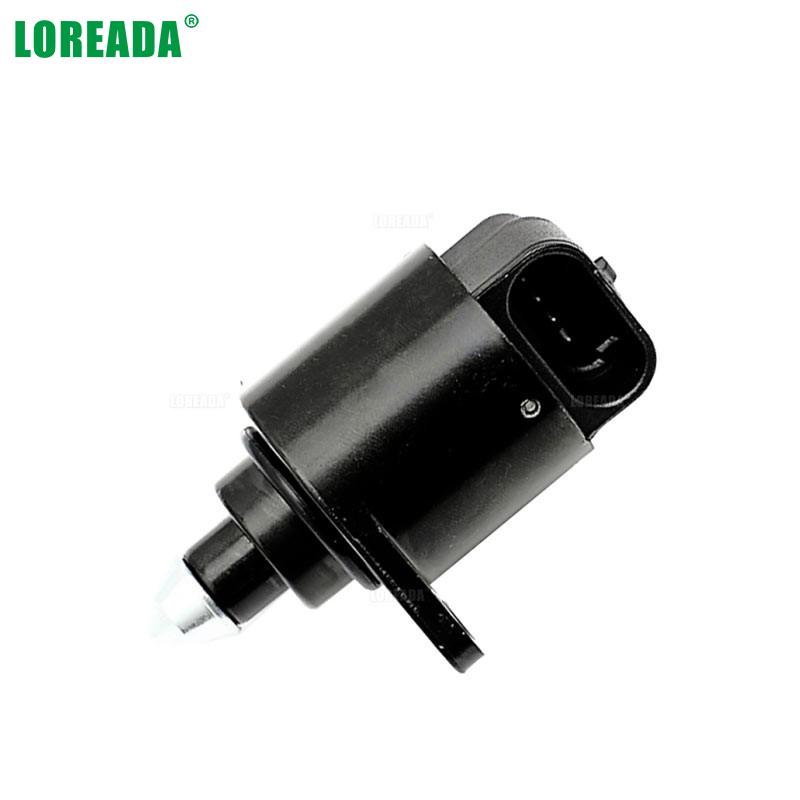

Description
Manufacturer OEM Number:
B32/00 1920.6W 19206W A97115 FDB1009
Dealer part number:
230016079247 CV1019412B1 958025
Features:
1. Long lasting and reliable working life time
2. Original OEM Original
3. 100% Tested Before leaving factory
Warranty: 1 Years
Application:
for Citroen
Berlingo MF 1.4i 1996/07-2015/12 1360 ccm, 55 KW, 75 PS
Berlingo Kasten M_ 1.4i 1996/07-2015/12 1360 ccm, 55 KW, 75 PS
Saxo S0, S1 1.4 VTS 1996/05-2003/06 1360 ccm, 55 KW, 75 PS
Xsara N1 1.4i 1997/04-2005/03 1360 ccm, 55 KW, 75 PS
Xsara Break N2 1.4i 1997/10-2005/08 1360 ccm, 55 KW, 75 PS
Xsara Coupe N0 1.4i 1998/03-2005/03 1360 ccm, 55 KW, 75 PS
for Peugeot
106 II 1 1.4i 1996/05-2015/12 1360 ccm, 55 KW, 75 PS
206 T3E 1.4i 2009/01-2015/12 1360 ccm, 55 KW, 75 PS
206 Schragheck 2A/C 1.4i 1998/09-2015/12 1360 ccm, 55 KW, 75 PS
206 SW 2E/K 1.4 2002/07-2015/12 1360 ccm, 55 KW, 75 PS
306 7B, N3, N5 1.4 SL 1994/06-2001/05 1360 ccm, 55 KW, 75 PS
306 Break 7E, N3, N5 1.4 1997/03-2002/04 1360 ccm, 55 KW, 75 PS
306 Schragheck 7A, 7C, N3, N5 1.4 1993/05-2001/05 1360 ccm, 55 KW, 75 PS
Partner Combispace 5F 1.4 1996/06-2015/12 1360 ccm, 55 KW, 75 PS
Partner Kasten 5 1.4 1996/06-2015/12 1360 ccm, 55 KW, 75 PS
Partnerspace 5F 1.4 2001-2003 1360ccm 75HP 55KW (Petrol)
Technical Parameter:
Operating Temperature Range:-40℃-125℃(150℃ peak)
Nominal Operating Voltage:12VDC
MIN/MAX Operating Voltage:7.5V-14VDC
Resistance Per Winding (@25℃):53Ω±10%
Minimum Resistance (@-40℃):35Ω
Solenoid inductance:33mH±20%
Step Increment :0.04167mm
MAX travel:8.5mm(204step)
