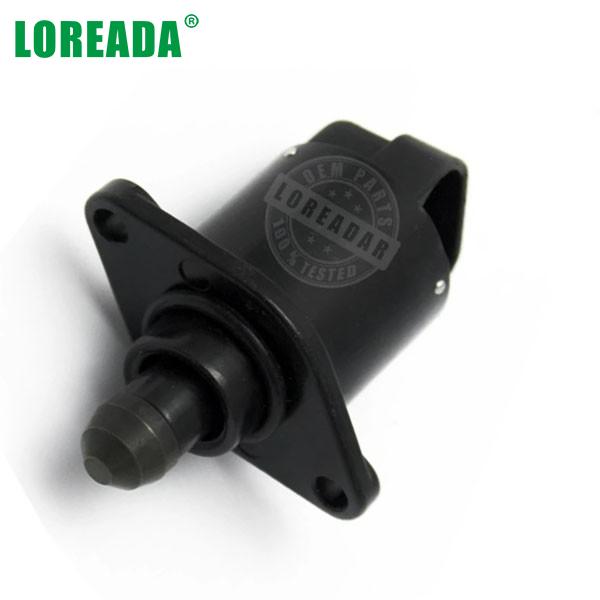

230016079247 230016079087 B13/00 C95181 1920V7 19201F Idle Air Control Actuator IACV IAC Valve Idle Air Control Valve For PEUGEOT Citroen Xantia Break 306 Cabriolet Schraqheck306 Schrägheck

Product Item：LRD043

✔ OEM Standard Size High Quality

✔ OEM parts NO.: B13/00 230016079087 230016079247 19201F 1920V7 C95181 106 306 406

for PEUGEOT 106 I(1A,1C)1.3;PEUGE 306/306 Cabriolet/Schraqheck;PEUGE 406/406 Break

✔ LOREADA Auto Parts OEM,Aftermarket parts products line:throttle body,IAC,Carburetor, Steering Gear,Wash pump,DELPHI parts,MAF sensor etc.,

Description

Manufacturer OEM Number:

B13/00 230016079087 230016079247 19201F 1920V7 C95181 106 306 406

Features:

1. Long lasting and reliable working life time

2. OEM quality

3.100% Tested Before leaving factory

Warranty:1 Years

Aplication:

For PEUGEOT 106 I(1A,1C)1.3;PEUGE 306/306 Cabriolet/Schraqheck;PEUGE 406/406 Break

Citroen
Xantia   X1   1.8i 16V   1995/06-1998/01   1761 ccm, 81 KW, 110 PS
Xantia   X2   1.8i 16V   1998/01-2003/04   1761 ccm, 81 KW, 110 PS
Xantia   X2   1.8i 16V   1998/01-2003/04   1761 ccm, 81 KW, 110 PS
Xantia Break   X1   1.8i 16V   1995/06-1998/01   1761 ccm, 81 KW, 110 PS
Xantia Break   X2   1.8i 16V   1998/01-2003/04   1761 ccm, 81 KW, 110 PS
Xantia Break   X2   1.8i 16V   1998/01-2003/04   1761 ccm, 81 KW, 110 PS
Xsara   N1   1.8i 16V   1997/04-2000/09   1761 ccm, 81 KW, 110 PS
Xsara   N1   2.0 16V   1997/04-2000/09   1998 ccm, 120 KW, 163 PS
Xsara Break   N2   1.8i 16V   1997/10-2000/09   1761 ccm, 81 KW, 110 PS
Xsara Coupe   N0   1.8i 16V   1998/02-2000/09   1761 ccm, 81 KW, 110 PS
Xsara Coupe   N0   2.0i 16V   1998/02-2005/03   1998 ccm, 120 KW, 163 PS
Xsara Picasso   N68   1.8 16V   2000/02-2015/12   1749 ccm, 85 KW, 115 PS
ZX   N2   1.8i 16V   1996/01-1997/06   1761 ccm, 81 KW, 110 PS
ZX   N2   2.0i 16V   1996/05-1997/06   1998 ccm, 120 KW, 163 PS
ZX Break   N2   1.8i 16V   1996/01-1998/02   1761 ccm, 81 KW, 110 PS

Peugeot
106 I   1A, 1C   1.3   1993/10-1996/04   1294 ccm, 72 KW, 98 PS
306   7B, N3, N5   1.8 16V   1997/03-2001/05   1761 ccm, 81 KW, 110 PS
306 Break   7E, N3, N5   1.8 16V   1997/03-2002/04   1761 ccm, 81 KW, 110 PS
306 Cabriolet   7D, N3, N5   1.8 16V   2000/07-2002/04   1761 ccm, 81 KW, 110 PS
306 Schrägheck   7A, 7C, N3, N5   1.8 16V   1997/03-2001/05   1761 ccm, 81 KW, 110 PS
306 Schrägheck   7A, 7C, N3, N5   2.0 S16   1996/03-2001/05   1998 ccm, 120 KW, 163 PS
406   8B   1.8 16V   1995/11-2000/10   1761 ccm, 81 KW, 110 PS
406   8B   1.8 16V   1995/11-2000/10   1761 ccm, 81 KW, 110 PS
406 Break   8E/F   1.8 16V   1996/10-2000/10   1761 ccm, 81 KW, 110 PS
406 Break   8E/F   1.8 16V   1996/10-2000/10   1761 ccm, 81 KW, 110 PS

Technical Parameter:

Oeperateing Temperature Range:-40℃-125℃(150℃ peak)

Nominal Operating Voltage:12VDC

MIN/MAX Operating Voltage:7.5V-14VDC

Resistance Per Winding (@25℃):53Ω±10%

Minimum Resistance (@-40℃):35Ω

Solenoid inductance:33mH±20%

Step Increment :0.04167mm

MAX travel:8.5mm(204step)

You can always CONTACT US with your car details so we can find the part required

Inquiry Us
