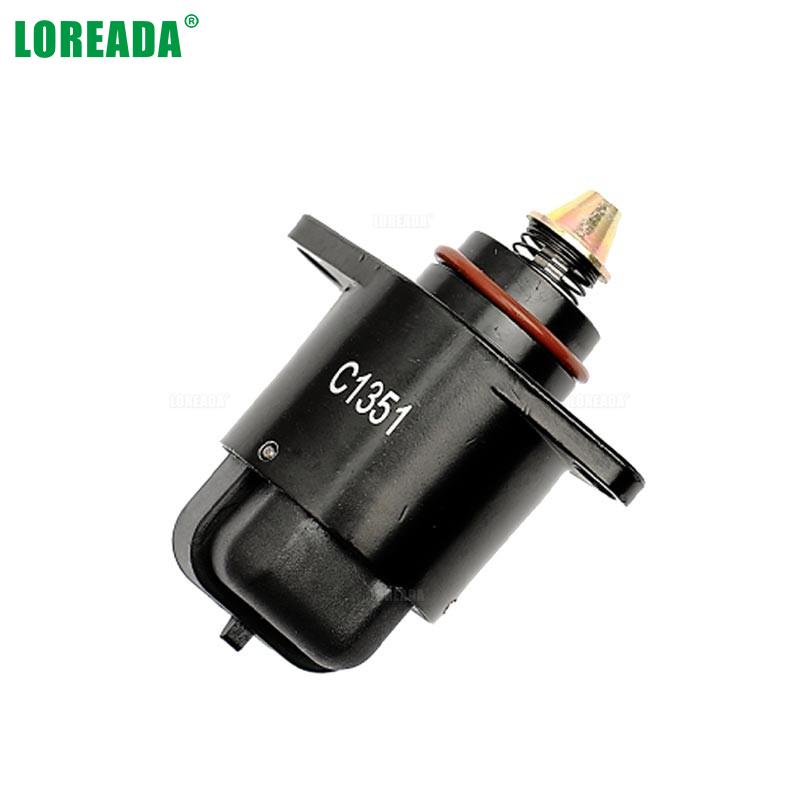

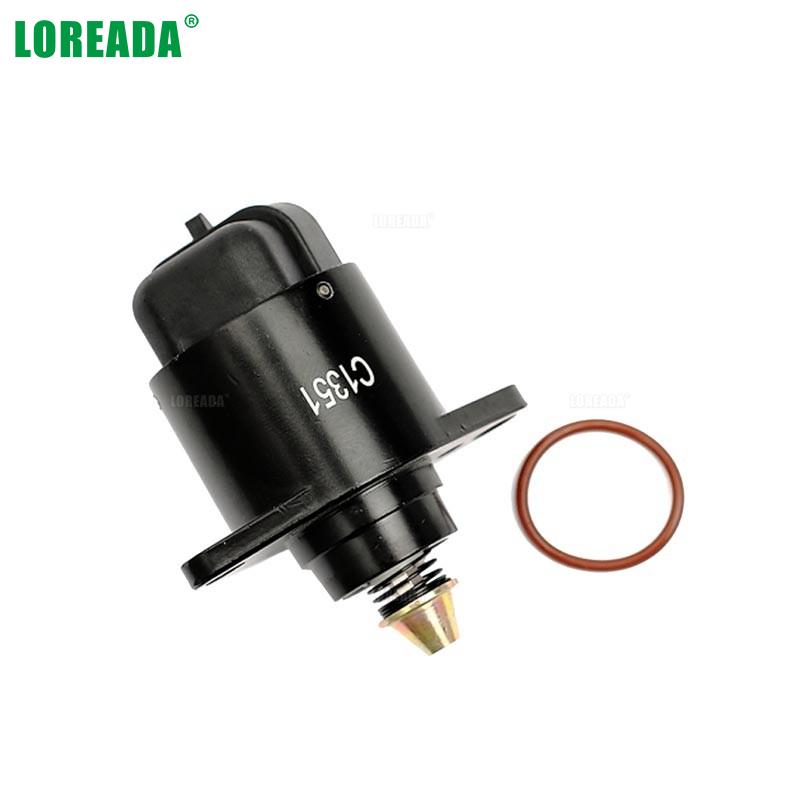

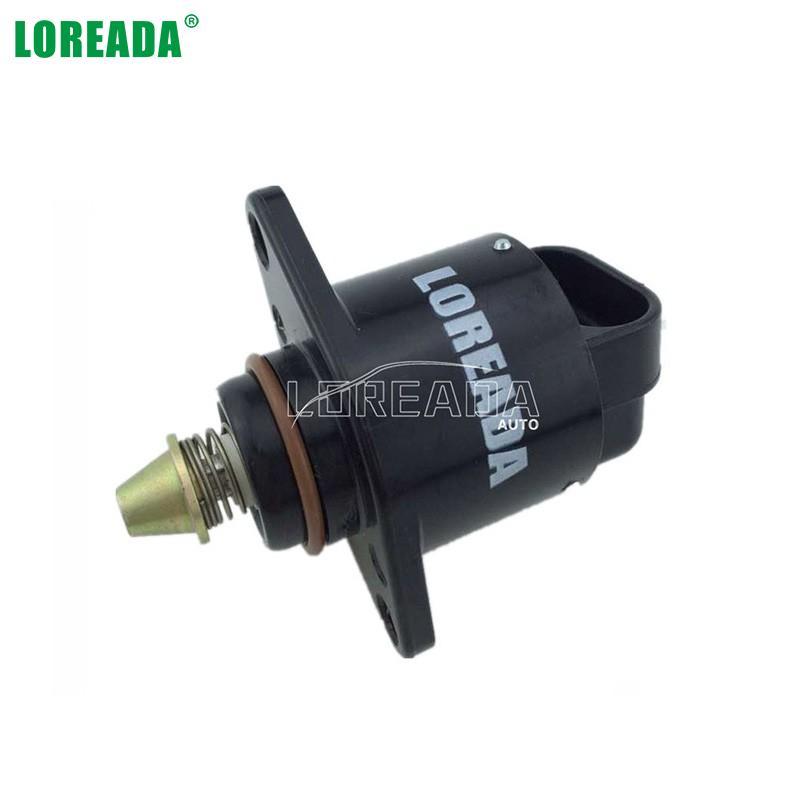

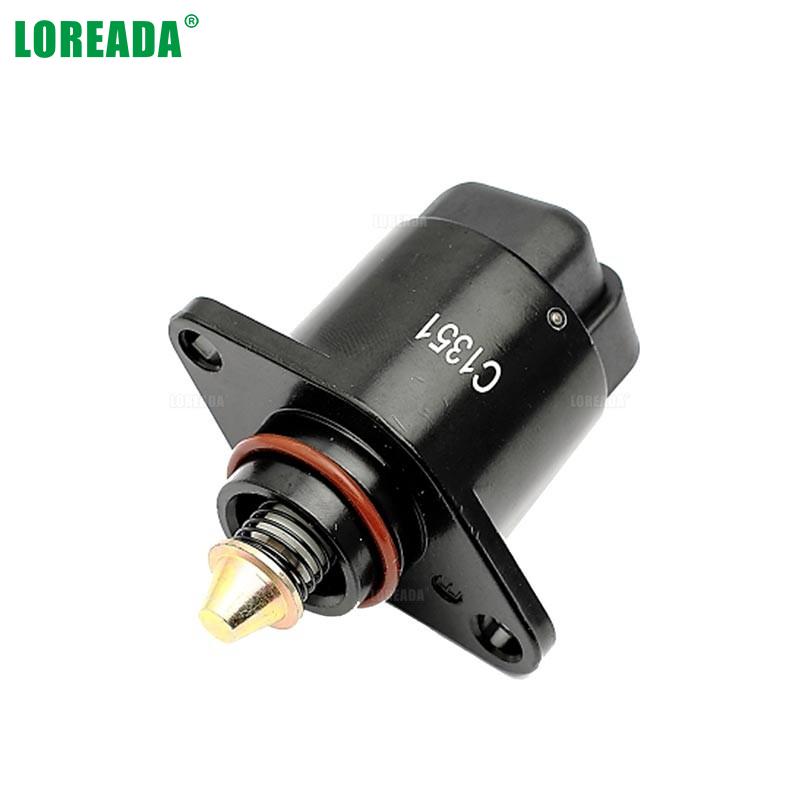

Description
Manufacturer OEM Number:
17112027 817254 17059524 59524 C1351 A95160 ICD00127 6NW009141121 CV1000111B1 407501510 705432010 87015 84021
17112027 817254 17059524 59524 C1351 A95160 ICD00127 6NW009141121 CV1000111B1 407501510 705432010 87015 84021
Replaces dealer part numbersr:
OPEL:817254 17112027
SIMENCE:A95160
DELPHI:ICD 00127
VDO:AT-59524R
HELLA:6NW00914112
Warranty: 3 Years
Aplication:
OPEL
ASTRA F (56_, 57_) 1.4 i C 14 NZ 1389 44 1991-1998
ASTRA F CLASSIC Estate 1.4 i X 14 NZ 1389 44 1998-2005
ASTRA F Estate (51_, 52_) 1.4 i C 14 NZ 1389 44 1991-1998
ASTRA F Hatchback (53_, 54_, 58_, 59_) 1.4 i C 14 NZ 1389 44 1992-1998
ASTRA F Van (55_) 1.4 i C 14 NZ 1389 44 1991-1999
COMBO (71_) 1.2 C 12 NZ 1195 33 1994-2001
COMBO (71_) 1.4 C 14 NZ 1389 44 1994-2001
CORSA A Hatchback (93_, 94_, 98_, 99_) 1.2 i C 12 NZ 1195 33 1989-1993
CORSA A Hatchback (93_, 94_, 98_, 99_) 1.3 i C 13 N 1297 44 1986-1990
CORSA A Hatchback (93_, 94_, 98_, 99_) 1.4 i C 14 NZ 1389 44 1990-1993
CORSA B (73_, 78_, 79_) 1.2 i X 12 SZ 1195 33 1993-2000
CORSA B (73_, 78_, 79_) 1.2 i 12 NZ 1195 33 1993-2000
CORSA B (73_, 78_, 79_) 1.4 i C 14 NZ 1389 44 1993-2000
KADETT E (39_, 49_) 1.3 i CAT C 13 N 1297 44 1985-1991
KADETT E (39_, 49_) 1.4 i C 14 NZ 1389 44 1990-1991
KADETT E Box (37_, 47_) 1.4 i C 14 NZ 1389 44 1990-1991
KADETT E Combo (38_, 48_) 1.4 i C 14 NZ 1389 44 1991-1994
KADETT E Convertible (43B_) 1.4 i C 14 NZ 1389 44 1990-1991
KADETT E Estate (35_, 36_, 45_, 46_) 1.3 i CAT C 13 N 1297 44 1985-1991
KADETT E Estate (35_, 36_, 45_, 46_) 1.4 i C 14 NZ 1389 44 1990-1991
KADETT E Hatchback (33_, 34_, 43_, 44_) 1.3 i CAT C 13 N 1297 44 1985-1991
KADETT E Hatchback (33_, 34_, 43_, 44_) 1.4 i C 14 NZ 1389 44 1990-1991
VAUXHALL
ASTRA Mk II Belmont 1.4 i 1389 44 1990-1991
ASTRA Mk II Hatchback 1.4 i 1389 44 1990-1991
ASTRA Mk III (F) 1.4 i 1389 44 1992-1998
ASTRA Mk III (F) Estate 1.4 i 1389 44 1991-1998
ASTRA Mk III (F) Hatchback 1.4 i 1389 44 1991-1998
ASTRAVAN Mk III (F) 1.4 i 1389 44 1991-1994
COMBO Mk I (B) 1.2 1195 33 1994-2001
COMBO Mk I (B) 1.4 1389 44 1994-2001
CORSA Mk I (B) 1.2 i 1195 33 1993-2000
CORSA Mk I (B) 1.4 i 1389 44 1993-2000
NOVA Hatchback 1.2 i CAT 1195 33 1989-1993
NOVA Hatchback 1.3 i CAT 1297 44 1989-1993
NOVA Hatchback 1.4 i 1389 44 1990-1993
FOR Technical Parameter:
Oeperateing Temperature Range:-40℃-125℃(150℃ peak)
Nominal Operating Voltage:12VDC
MIN/MAX Operating Voltage:7.5V-14VDC
Resistance Per Winding (@25℃):53Ω±10%
Minimum Resistance (@-40℃):35Ω
Solenoid inductance:33mH±20%
Step Increment :0.04167mm
MAX travel:8.5mm(204step)
